3m Diameter Circular Truss Spigot Connected
This Circular truss design is widely used for wedding, parties, concerts, road shows,etc.
Description
Aluminum lighting truss system:
PinYuan supplies aluminium lighting truss from all the major manufacturers such as Milos, Duratruss, Global truss, Alustage and Prolyte. We also offer our own custom truss manufacturing facilities. Therefore we can provide specialist and non standard truss designs under our brand.
We can advise you through the different grades of stage truss available and its suitability for whatever your requirement or situation may be, from a lightweight shop truss system to heavy duty industrial stage truss rigging.

Square Frame Circle Truss Package (4 x 90° Segments) - 3 Meters
Rugged & Durable Truss for Live Events, Exhibitions & Retail
Circular Trussing is designed for high-frequency usage or installations that demand higher loading and is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs and other permanent installations. It is ideal for rental, touring and exhibition companies.

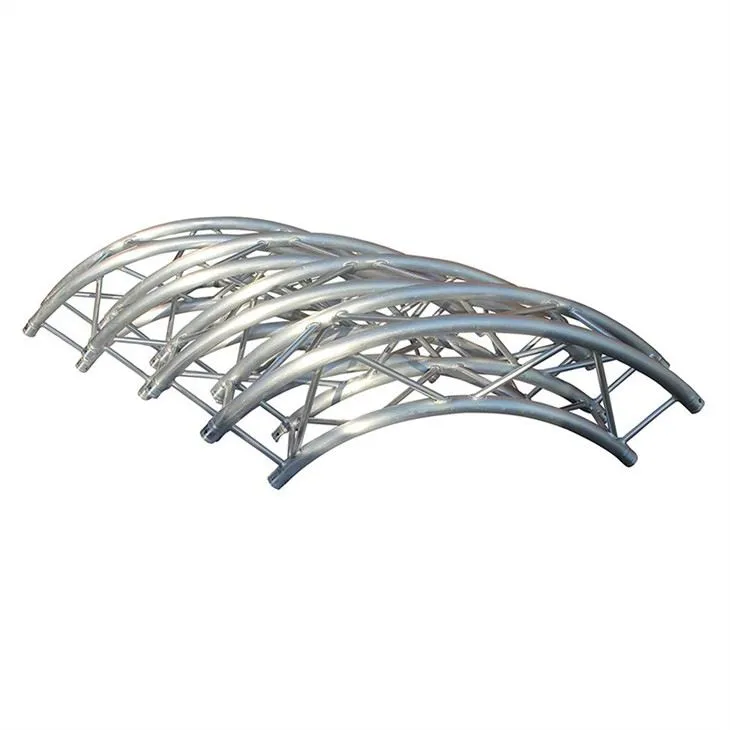

Square Box Frame Circle Truss 3m Package is composed of four curved box truss segments with conical connectors to make a 3m (9.84 ft) circle trussing configuration. Constructed of high-grade aluminium, This circle Square Box Truss consists of a 50x3mm main tubes and 20x2mm braces.




Features
Includes 4 x 90° curved box truss segments & connecting hardware
Perfect for live outdoor or indoor productions, exhibitions, retail displays & nightclubs
Ideal truss system for rental, touring and exhibition companies
Constructed from high-grade aluminum with 50mm (2") diameter outer tubes and 20mm (3/4") diameter braces for superior strength
Manufactured to exacting specifications in PYG own factory
TÜV-certified aluminum welding
4 - F34 Square Box Truss 90-Degree Curved Segments
32 - Conical Connector
64 - Pin
64 - Safety Clip

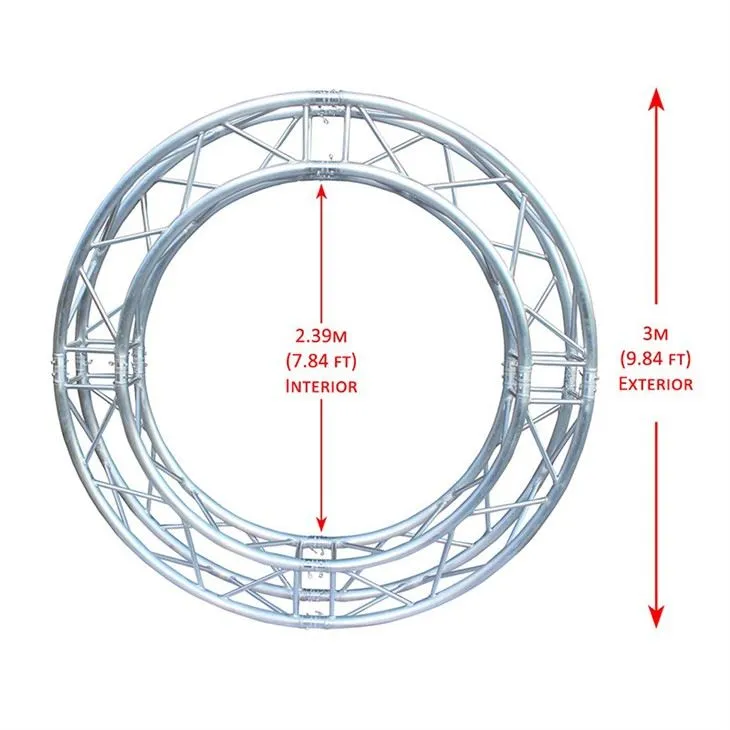

Dimensions:
Full Circle Outside Width: 3m (9.84 feet)
Full Circle Interior Width: 2.39m (7.84 feet)
Truss Width: 290mm (11.41 inches)
Total Depth: 290mm (11.41 inches)
Main Tubes: 50mm (2") diameter, 2mm thickness
Braces: 20mm (3/4") diameter, 2mm thickness
Weight: 155 lbs
Material: Aluminium EN-AWT6 6082
Safety Certifications: TÜV certified
1-Year Manufacturer Limited Warranty (excludes use as rental equipment)
Why choose us?
Our 50,000 sq. meters truss manufacturing and fabrication facility is located in Guangdong, China, and has been operating since 2011. All our products are good quality with TUV, CE, ISO9001 Certificate
Available size
| 1.5m ( 4.92ft) | 2pcs * 180 arcs |
| 2m (6.56ft) | 2pcs * 180 arcs |
| 3m (9.84ft) | 3pcs * 120 arcs |
| 4m ( 13.12ft) | 4pcs * 90 arcs |
| 5m (16.4ft) | 6pcs * 60 arcs |
| 6m (19.68ft) | 6pcs * 60 arcs |
| 7m (22.95ft) | 8pcs * 45 arcs |
| 8m (26.24ft) | 8pcs * 45 arcs |
| 10m (32.02ft) | 12 pcs * 30 arcs |
| 12m (39.37ft) | 12 pcs * 30 arcs |
Application:
The circular truss can be used on the ceiling to hang lights, speakers, and led screens. Equivalent to a straight square box lighting truss, the circular truss design is more creative, and it is widely used in weddings, indoor and outdoor event scenes. It can also be used for large-scale exhibition ceilings.
